Axtra.Cure | Post Cure and Thermal Oven

Fully connected and Axtra.Insight Enabled

Axtra.Cure

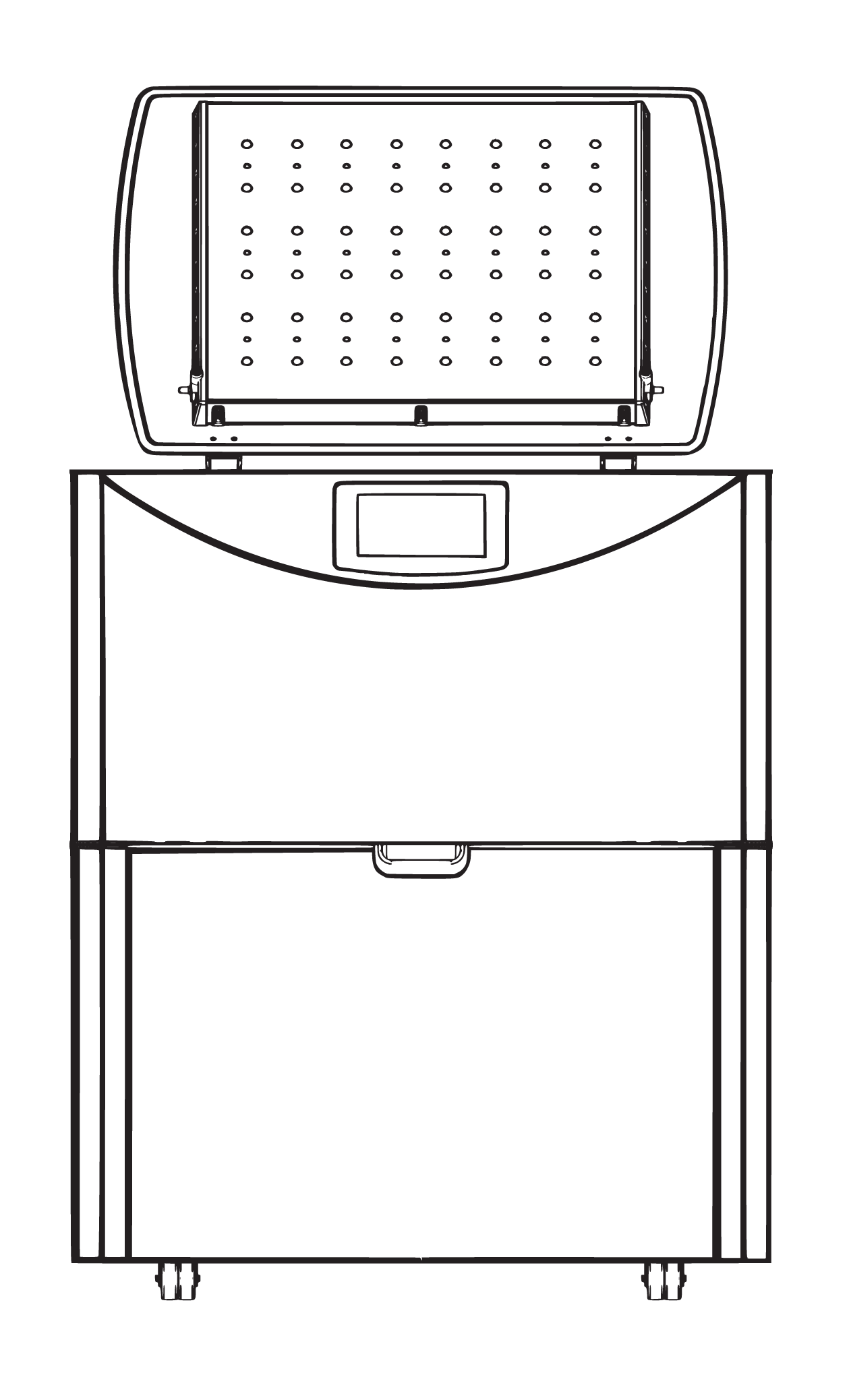

Axtra.Cure is a post-processing system that combines both UV and thermal treatment in a single device, offering superior control and flexibility.
Its UV upper chamber features triple independent frequencies (355-385-405 nm) with adjustable power, time, and temperature up to 60 °C, certified in real time via dual UV photosensors, and is compatible with all Axtra3D® printers and resins.
The bottom thermal chamber reaches up to 250 °C, managing ramp-up, ramp-down, and stationary cycles, with profiles importable from the Axtra Solutions™ or fully customizable via Axtra Open Access.
Both chambers can operate independently or simultaneously, while full integration with Axtra.Insight ensures complete process tracking and certification for reliable, repeatable post-processing.

Key Capabilities:

  • Uniform light exposure across all geometries.
  • Material-specific cure profiles for optimal strength and surface finish.
  • Integration with Axtra.Wash and Axtra.Insight for traceable, repeatable outcomes.
  • Combines UV and thermal post-processing in a single device.
  • Advanced UV upper chamber with three independently controlled wavelengths (355, 385, 405 nm)
  • Preheating up to 60 °C, and dual UV photosensors for real-time light power verification and certification.
  • Automatically imports validated UV curing profiles from the Axtra materials portfolio.
  • Enables users to create and save custom UV curing profiles for specialized applications.
  • Precision-controlled thermal chamber capable of reaching 250 °C, with managed ramp-up, ramp-down, and stable cycle settings.
  • Imports standardized heat treatment profiles directly from the Axtra materials library.
  • Supports creation of user-defined heat treatment profiles for specific materials or process needs.
  • UV and thermal chambers can operate independently or simultaneously for maximum flexibility and throughput.
  • Fully integrated with Axtra.Insight for advanced reporting and process traceability.
  • Also works independently with 3D Printers from other OEMS.
